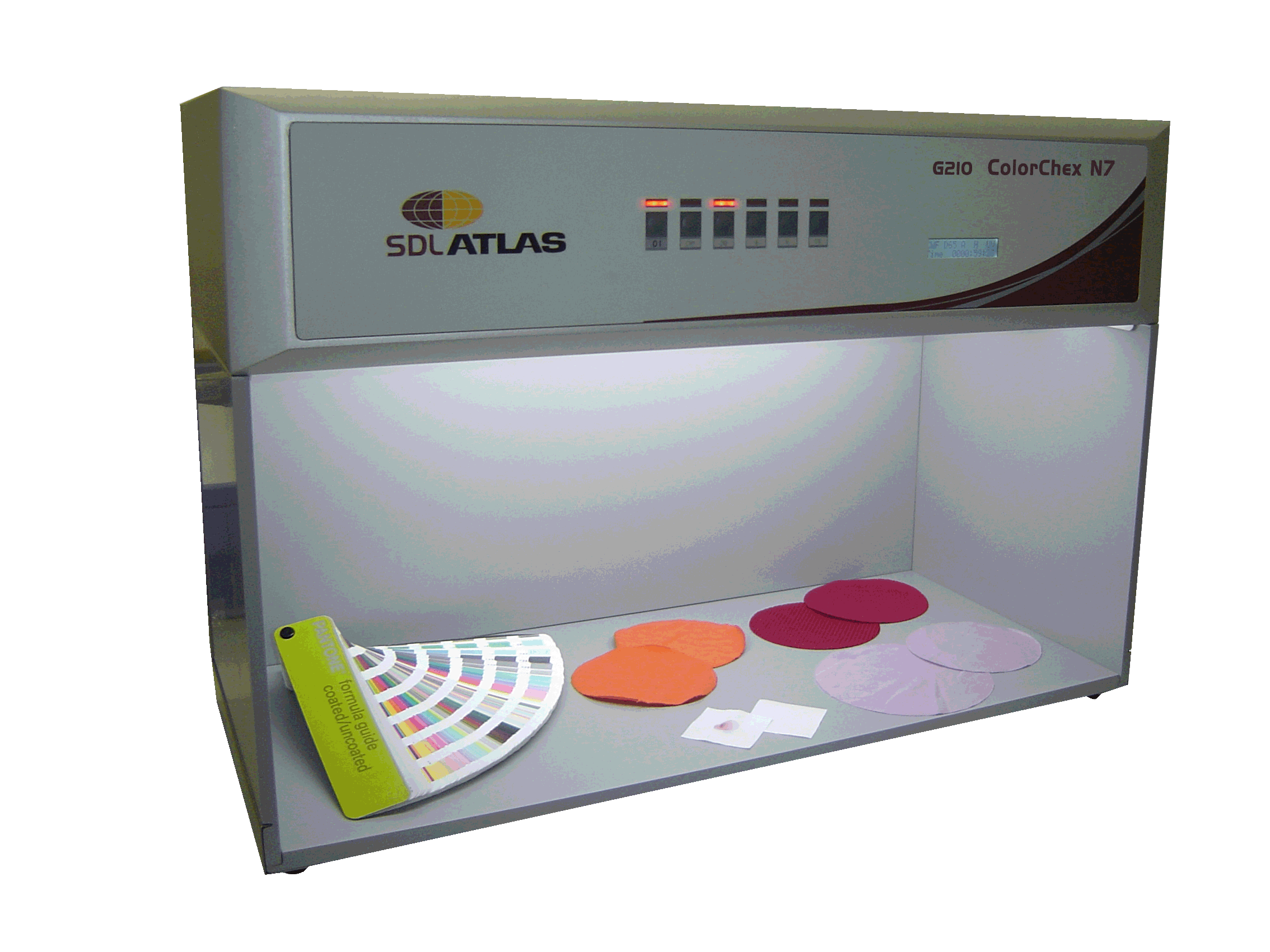

ColorChex Color Assessment Cabinet

New high specification/low cost option to conventional light booths. With illuminant A and Horizon sunlight as standard, 3 other fluorescent light sources can also be specified including D65 (CRI 98), TL84/P15 and UV.



Light booths comply with BS 950 Part 1 and 16 CIES. X0.12. Preset with programmable-sequence lighting and individual lighting life record function. Optional selection for remote control function of light source selection.



•  Pre-heat time setting (10 seconds) for fluorescent
• With usage record (by on / off) for individual fluorescent
• With individual lighting life record function and over-time alarm
• With programmable-sequence lighting function
• Interlocking function for three light sources: D65, TL84/P15 and UV
• With optional light sources (change the name on display panel through program setting)
• Remote control of light source selection (Optional)



Switch Code	Lamp Options
D65	Artificial Daylight D65	Correlated color temperature is 6500 K. Within the tolerances prescribed in BS 950: Part: 1, Illuminant for color matching apprasial. Specified for most applications where there is a need to maintain color consistency and quality. Conforming highly to the CIE specifications, for accurate color matching.
TLD84	Narrow-Band Florescent	Narrow Band Triphosphor Fluorescent lamps. Correlated color temperature of 4000 K. Used as an European Point of Sales Illuminant.
A	Illuminant A (Inc A)	Correlated color temperature 2856 K. Required by BS 950: Part 1 as a test for metamerisum (CIE Illuminant A). Used to check for color flaring. This is particularly important for those shades containing red and yellow coloring matters.
H	Horizon Daylight	Home lighting with correlated color temperature of 2300 K.
UV	Ultra-Violet Blacklight (UV)	Use to detect the prescence of Optical Brightener and/or Florescent Dyes. Therefore it is useful when assessing white and Florescent shades to check the level present and its evenness.



STANDARDS

AATCC

• AATCC 61
• AATCC 23
• AATCC 16
• AATCC 15
• AATCC 8
• AATCC 109
• AATCC 116
• AATCC 117
• AATCC 132
• AATCC 133
• AATCC 190

ANSI

• ANSI ANSI

ASTM

• ASTM D1729

BS

• BS 950 PART 1

CIES

• CIES 16 CIES.X0.12

ISO

• ISO 105-C09
• ISO 105-C08
• ISO 105-C07
• ISO 105-C06
• ISO 105-C04
• ISO 105-C03
• ISO 105-C02
• ISO 105-C01
• ISO 105-C05
• ISO 105-X11

NEXT

• NEXT 7
• NEXT COLOR ASSESSMENT
• NEXT 18B
• NEXT 18A
• NEXT 10
• NEXT 9A
• NEXT 9
• NEXT 7B
• NEXT 7A
• NEXT 18
• NEXT 6
• NEXT 5
• NEXT 4A
• NEXT 4
• NEXT 3A
• NEXT 3
• NEXT 2
• NEXT 1
