No. 231 Schob type Automatic Rebound Tester, SB-A1

The Schob type Automatic Rebound Tester measures rebound resilience of rubber specified in ISO 4662.

Model SB-A1 can measure automatically up to max. 20 samples by means of revolver type specimen supply unit.

Add To Enquiry
Loading...

Description

Specifications

Model SB-A1
Hammer unit
  • Diameter of impact hemisphere: ∅12.5mm
  • Impact force : 0.25kg
  • Drop angle: 90°
  • Impact velocity: 1.88m/s
  • Release system: Electromagnet

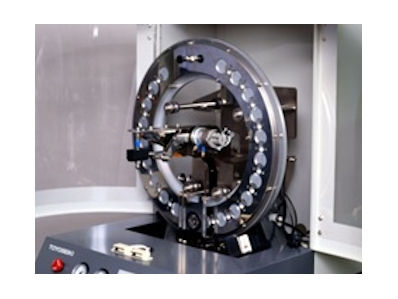

Specimen supply unit
  • System : Revolver type
  • Number of specimens: 20 pieces
  • Specimen diameter: ∅29±0.5mm
  • Specimen thickness: 12.5±0.5mm
  • Specimen holding force: 200±20N (adjustable)
Data processing unit Provided as standard feature
Power supply Single-phase, AC100V, 50/60Hz, 0.2kVA
Compressed air requirement 0.4 to 0.7MPa
Dimensions W550 × D700 × H880mm
Mass (Approx.) 100kg

Related standards

ISO 4662 Rubber, vulcanized or thermoplastic — Determination of rebound resilience
