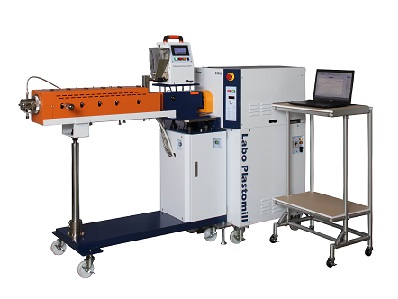

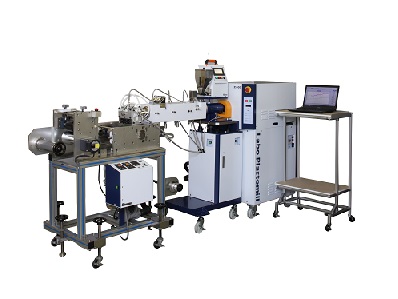

No. 655 Labo Plastomill (Torque Rheometer)

Measuring mixers & extruders



The Labo Plastomill incorporates small size mixer and extruder and is used to evaluate prosessability i.e. mixing, extruding, gelation, dynamic thermal stability, etc. of plastics and rubber, etc.

Knowing processing characteristics of polymer materials such as thermoplastic resins, thermosetting resins and elastomers is very important for cost reduction and quality control.

In developing of new materials in addition to knowing the processing characteristics it is also important to find out through simulation whether the material can be molded or not and determine appropriate processing conditions.

This Labo Plastomill perform these tests on small quantities of samples, mainly the following tests.

  • Processing characteristics evaluation test by small mixer (30 to 90cm3)
  • Simulation and other evaluation tests by small extruder (Ø20mm)

The Labo Plastomill is a practical testing machine (shear force acts) which provides many reliable information necessary for molding process and is already being used in numerous industries and related fields for this purpose.

Add To Enquiry
Loading...

Description

SPECIFICATIONS

Model 3S500 10S100 3S150
Motor power 15kW 5.5kW 3.5kW
Max. torque 300Nm 1000Nm 300Nm
Speed range 0.1 to 500rpm 0.1 tp 100rpm 0.1 to 150rpm
Dimensions W525 x D660 x H950mm
Mass (Approx.) 285kg 235kg 215kg
Power supply Three-phase, AC200V, 50/60Hz, 34.6kVA (or specify) Three-phase, AC200V, 50/60Hz, 20.8kVA (or specify)
