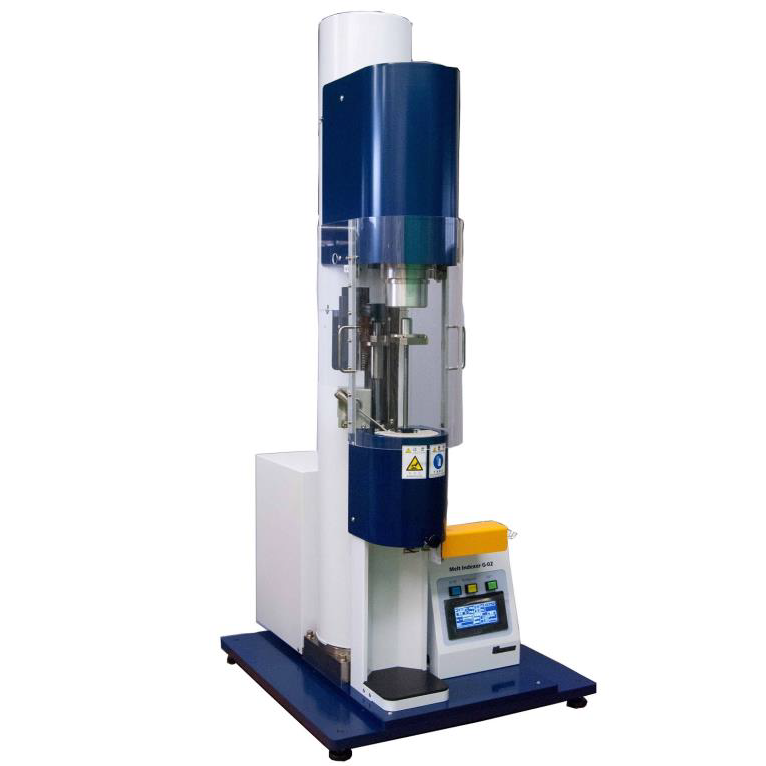

No. 522 Multi-weight Melt Indexer, G-02

Multi-weight Melt Indexer, G-02 is designed for ASTM D 1238 procedure D, multiple weights test.  Up to 8 different weights can be used with automatic selection.

Add To Enquiry
Loading...

Description

Specifications

Temperature range 100 to 350°C (Option 400°C)
Temperature accuracy ±0.2°C
Test loads 0.325kg, 2.16kg, 3.8kg, 5kg, 10kg, 12.5kg, 21.6kg

+select 1 kind from 1.0kg, 1.05kg, 1.2kg

Multiple weights test Up to 3 test loads in one test
Weight lifting & residue push Automatic (Motorized)
Touch screen Multi-lingual LCD touchscreen (English, Chinese, Korean, Japanese)
Power supply Selection:

  • Single-phase, AC100 to 115V, 50/60Hz, 0.6kVA
  • Single-phase, AC200 to 230V, 50/60Hz, 0.6kVA
Dimensions W700×D730×H1400mm
Weight Approx. 145kg

Related standards

ISO 1133 Plastics-Determination of the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastics
ASTM D1238 Standard Test Method for Melt Flow Rates of Thermoplastics by Extrusion Plastometer
