No. 557 Friction Tester, HM-3 (COF Tester)

COF tester



Application

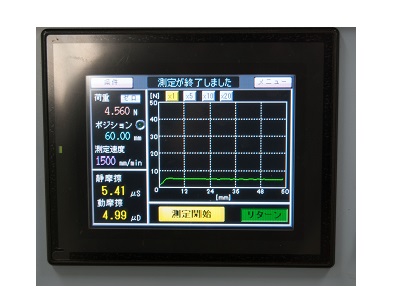

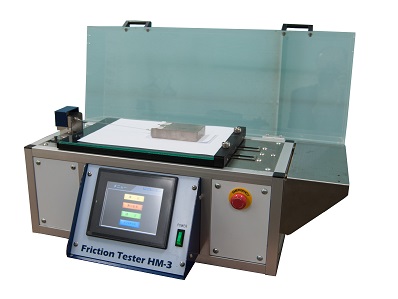

The Friction Tester, HM-3 measures and digitally display friction coefficient of films and papers.

Add To Enquiry
Loading...

Description

Specifications

Dimensions of table W330 x D225  t=5
Table travel distance 1 to 200mm
Table speed 5 to 1500mm/min.
Load cell
  • 10N
  • 20N
  • 50N

(Select one out of these)
Sled
  • 200g, 63 x 63mm
  • 1000g, 60 x 1000g

(Select one out of these)
Dimensions W540 (Max630) x D350 x H280mm

W650 x D350 x H330mm (with optional safety cover)
Mass (Approx.) 19kg
Power supply Single-phase, AC100 to 240V, 50/60Hz, 0.2kVA

Related standards

ISO 8295

JIS K 7125, P 8147
