Description

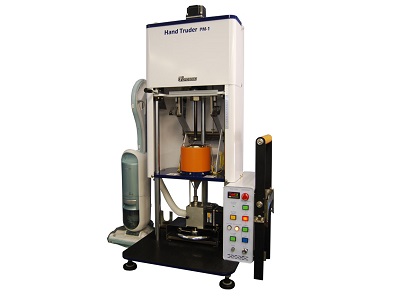

Molder
| Temperature range | RT+20 to 400°C |
| Cylinder | ∅12 x L130mm (by replacement of the inner cylinder) |
| Sample capacity | Max. 14cm³ |
| Operation of injection | Manual (Up-down operation of lever) |
| Mold (Standard) | Small size test piece (JIS K 7162-1BA) etc. |
| Dimensions | W603 x D866 x H1175mm |
| Mass (Approx.) | 110kg |
| Power supply | Main unit: Single-phase, AC100V, 50/60Hz, 1.2kVA (or specify)
Temp. controller for mold: Single-phase, AC100V, 50/60Hz, 0.5kVA (or specify) |
Pelletizer
| Temperature range | RT+20 to 400°C |
| Cylinder | ∅20 x L130mm |
| Sample capacity | Max. 40cm³ |
| Size of pellet | Approx. ∅2.5 x 2.5mm (Length can be changed) |
| Dimensions | W603 x D866 x H1175mm |
| Mass (Approx.) | 110kg |
| Power supply | Main unit: Single-phase, AC100V, 50/60Hz, 1.2kVA (or specify)
Cleaner: Single-phase, AC100V, 50/60Hz, 0.8kVA (or specify) |
